Visualizations methods graphic and text control of the eHouse smart home. Android - screenshots



Screenshots of eHouse smart home software for Android:
  • Smartphones
  • PADs
  • Smart TV

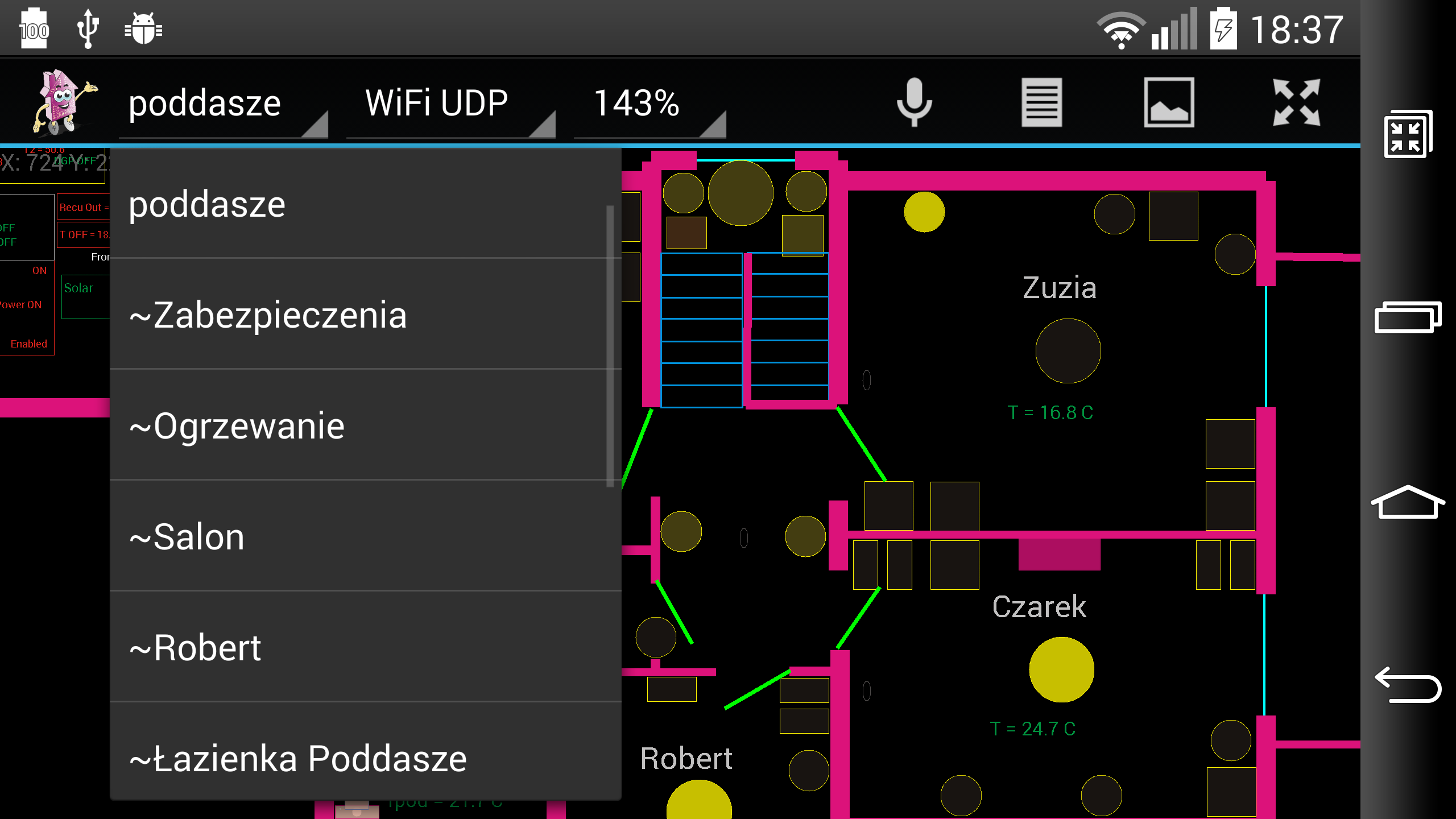

Visualization and graphic control from android individually designed view 1
 smart house ehouse control android
Visualization and graphic control from Android, individually designed view 2
 smart house ehouse control android
Lossless Scaling (Scalable Vector Graphics)
 smart house ehouse control android
Automatically generated views for eHouse controllers: roller blind controller, drives and security system
 smart house ehouse control android
Fullscreen mode (simultaneous touch of the screen with two fingers)
 smart house ehouse control android
Online communication options - visualization and graphic control:
  • WiFi UDP broadcasts over the LAN
  • WiFi TCP / IP server connection to the CM controller, eHouse. PRO, software
  • UDP intranet (broadcasts over the internet / VPN intranet)
  • Internet TCP / IP (server connection to the CM controller, eHouse. PRO, software

 smart house ehouse control android

Views generated automatically for all controllers on the example of a living room
 smart house ehouse control android

View of the boiler room controller generated automatically
 smart house ehouse control android

Form with selection lists for sending events to the eHouse system
  • WiFi
  • Internet
  • SMS
  • e-mail

 smart house ehouse control android

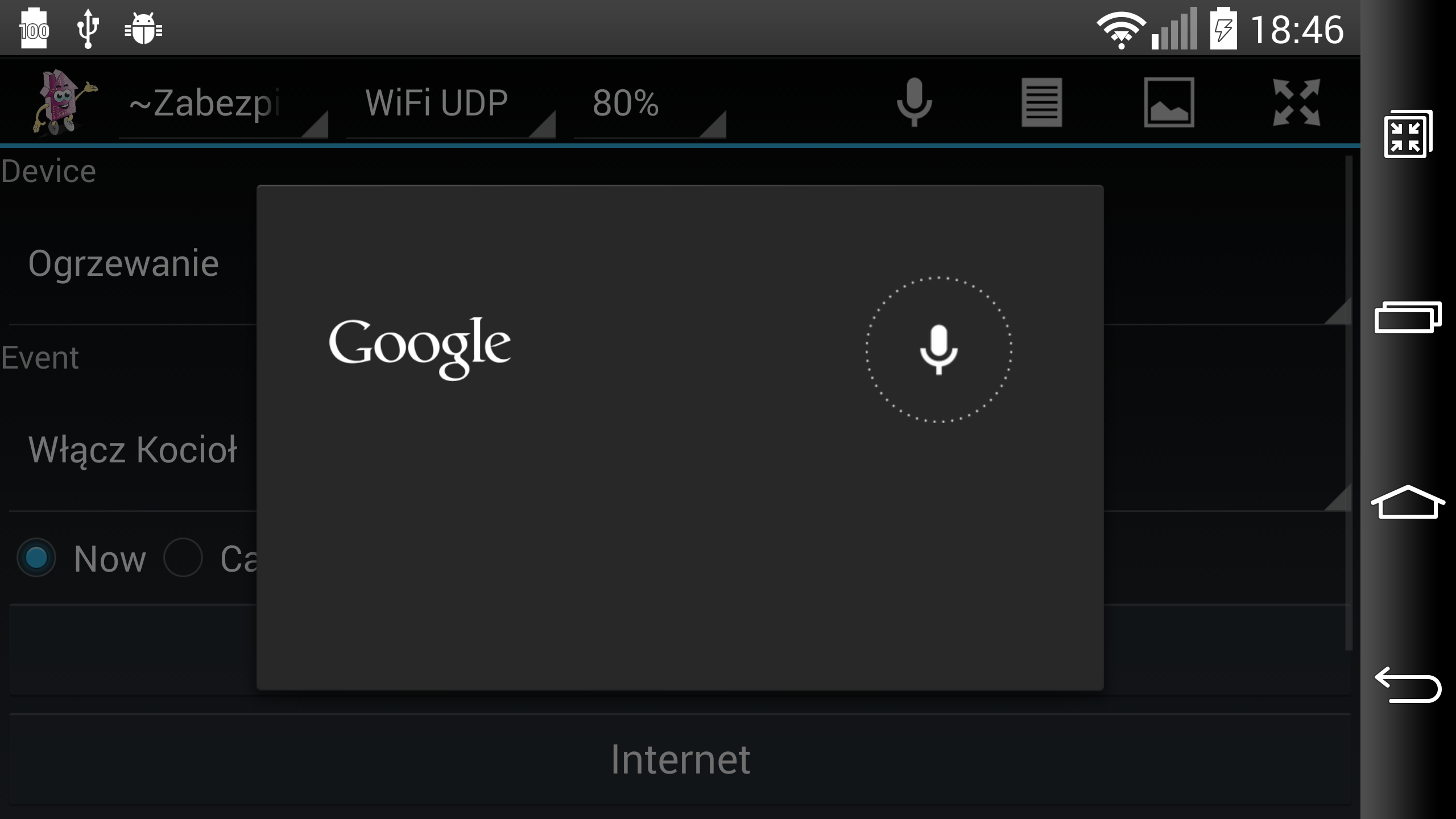

Acoustic control with speech recognition
 smart house ehouse control android
